Reducing the search space of the brute force search

Consider the brute force search method:

  d_best = -1; r_best = -1; len_best = 0;

  for (d = 1; d <= N; d++)
     for (r = 1; r <= N; r++)
     {
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }

Reducing the search space of the brute force search

When N is large (e.g.: N = 500,000), the solution will fail (Time Limit Exceeded)

  d_best = -1; r_best = -1; len_best = 0;

  for (d = 1; d <= 500000; d++)
     for (r = 1; r <= 500000; r++)
     {
        range = min( N-d+1, N-r+1);
        for (len = 1; len < ~500000; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }
           // This code segment executed 500000*500000*500000 times !
           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }

Reducing the search space of the brute force search



  • The brute force search method can be made more efficient if:

      • We can reduce the number of eligible solutions

    This technique is called:   search space reduction

  • Unfortunately:

      • There is no standard way to reduce the search space for a general problem

    I.e.: you need to "use your wits" to find a way to reduce the search space

  • I will illustrate the search space reduction technique with my example.

Reducing the search space of the brute force search

Is there a way to limit the d values that needs to be considered in this for-loop ?

  d_best = -1; r_best = -1; len_best = 0;

  for (d = 1; d <= N; d++)
     for (r = 1; r <= N; r++)
     {
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }

Reducing the search space of the brute force search

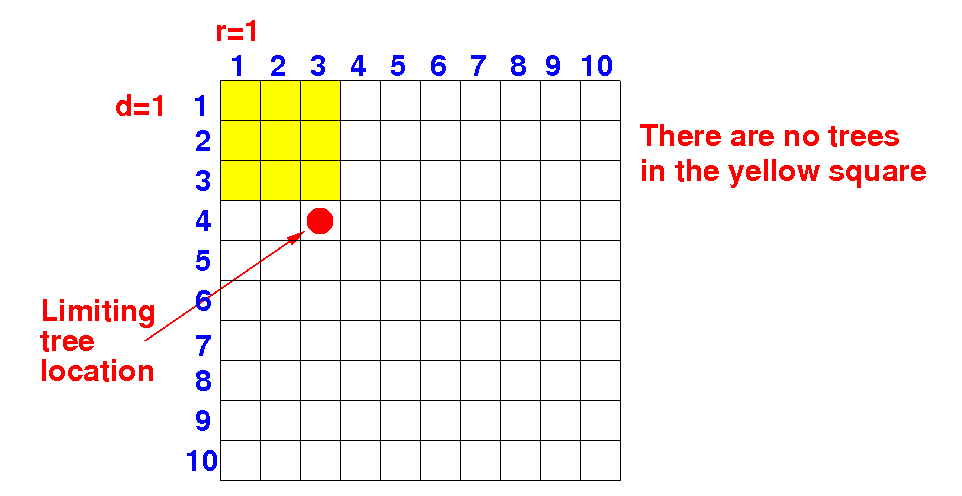

Consider the following situation:

   Can there be a better solution using d=2 (and r=1) ?
   Can there be a better solution using d=3 (and r=1) ?
   Can there be a better solution using d=4 (and r=1) ?

   Can there be a better solution using d=5 (and r=1) ?

Reducing the search space of the brute force search

Consider the following situation:

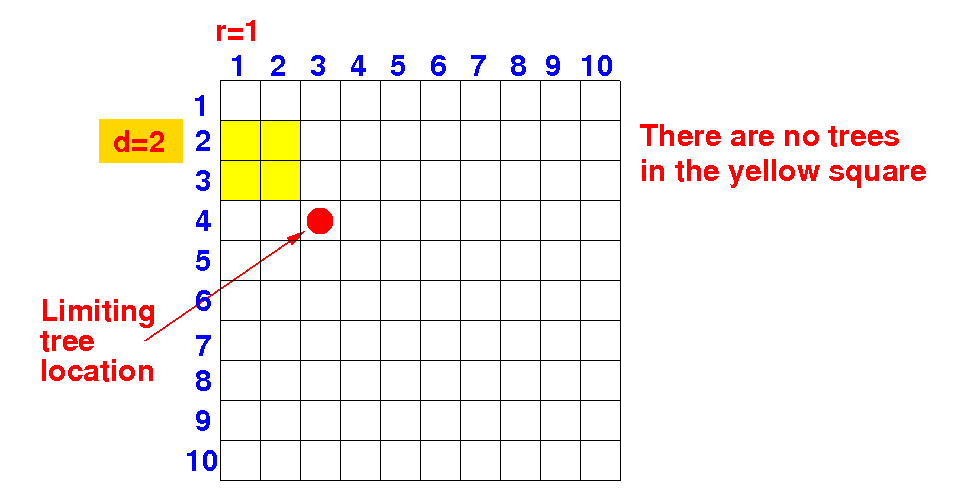

   Can there be a better solution using d=2 (and r=1) ?   No
   Can there be a better solution using d=3 (and r=1) ?
   Can there be a better solution using d=4 (and r=1) ?

   Can there be a better solution using d=5 (and r=1) ?

Reducing the search space of the brute force search

Consider the following situation:

   Can there be a better solution using d=2 (and r=1) ?   No

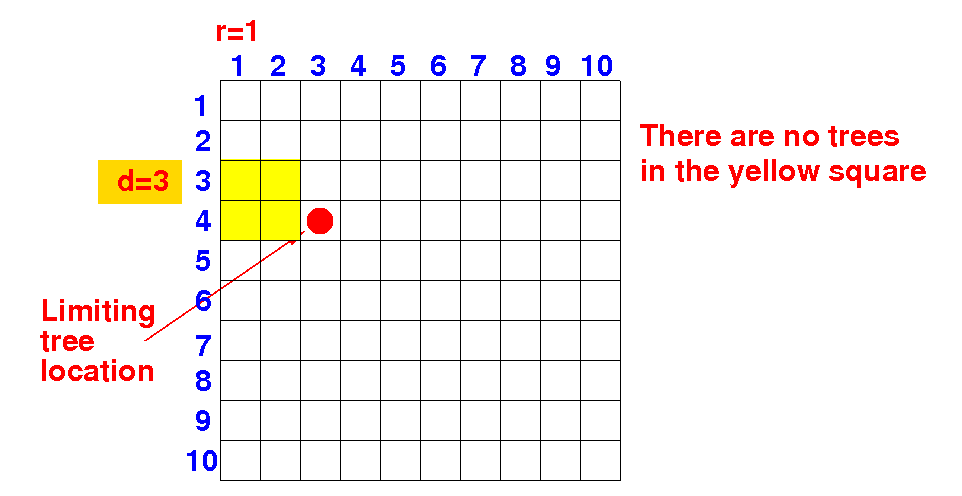

   Can there be a better solution using d=3 (and r=1) ?   No
   Can there be a better solution using d=4 (and r=1) ?

   Can there be a better solution using d=5 (and r=1) ?

Reducing the search space of the brute force search

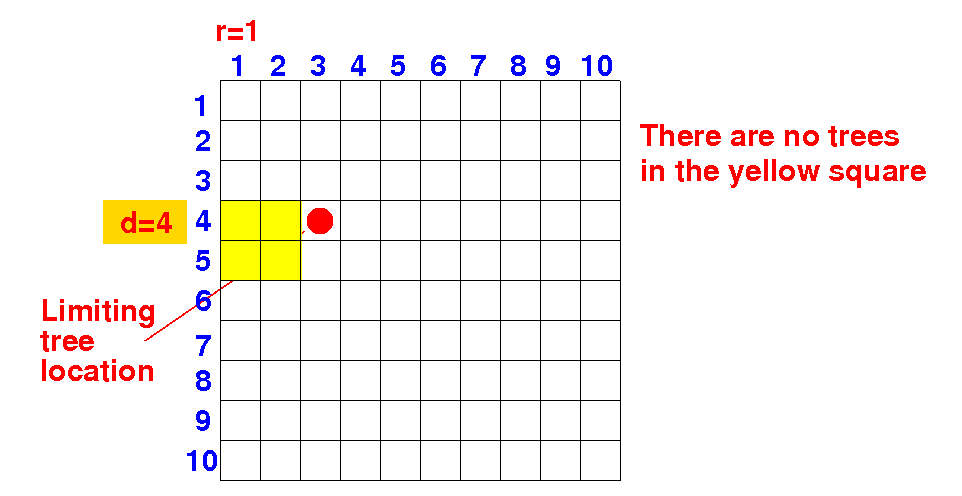

Consider the following situation:

   Can there be a better solution using d=2 (and r=1) ?   No
   Can there be a better solution using d=3 (and r=1) ?   No
   Can there be a better solution using d=4 (and r=1) ?   No

   Can there be a better solution using d=5 (and r=1) ?

Reducing the search space of the brute force search

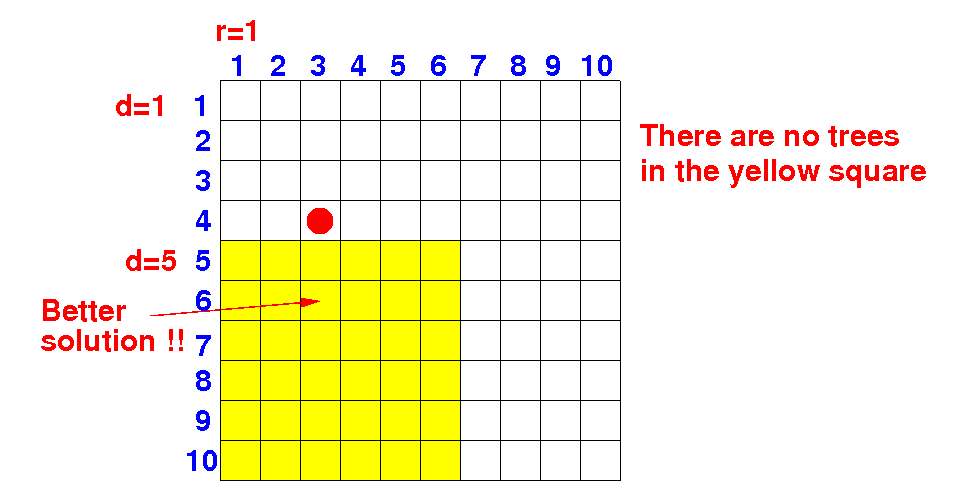

A better solution may be found after the obstacle:

   Can there be a better solution using d=2 (and r=1) ?   No
   Can there be a better solution using d=3 (and r=1) ?   No
   Can there be a better solution using d=4 (and r=1) ?   No

   Can there be a better solution using d=5 (and r=1) ?   Yes

Reducing the search space of the brute force search

Is there a way to limit the r values that needs to be considered in this for-loop ?

  d_best = -1; r_best = -1; len_best = 0;

  for (d = 1; d <= N; d++)
     for (r = 1; r <= N; r++)
     {
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }

Reducing the search space of the brute force search

Consider the following situation:

   Can there be a better solution using r=2 (and d=1) ?
   Can there be a better solution using r=3 (and d=1) ?

   Can there be a better solution using r=4 (and d=1) ?

Reducing the search space of the brute force search

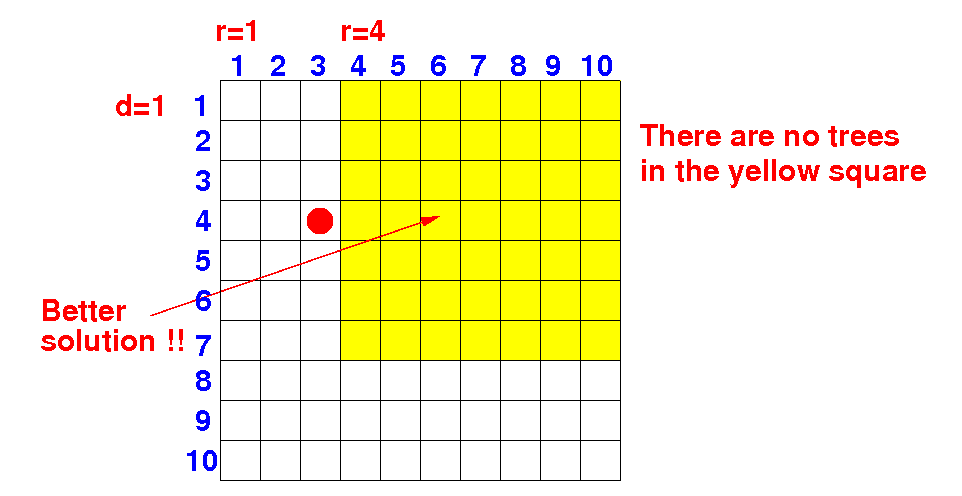

A better solution may be found after the obstacle:

   Can there be a better solution using r=2 (and d=1) ?   No
   Can there be a better solution using r=3 (and d=1) ?   No

   Can there be a better solution using r=4 (and d=1) ?   Yes

A hypothesis

Hypothesis derived from the previous observations:

  • The upper coordinate of a largest possible pool is either:

      • 1          or
      • d+1 where d is the down coordinate of some tree

  • The right coordinate of a largest possible pool is either:

      • 1          or
      • r+1 where d is the right coordinate of some (other) tree



Note:   always verify your hypothesis with some examples !!

Verifying the hypothesis

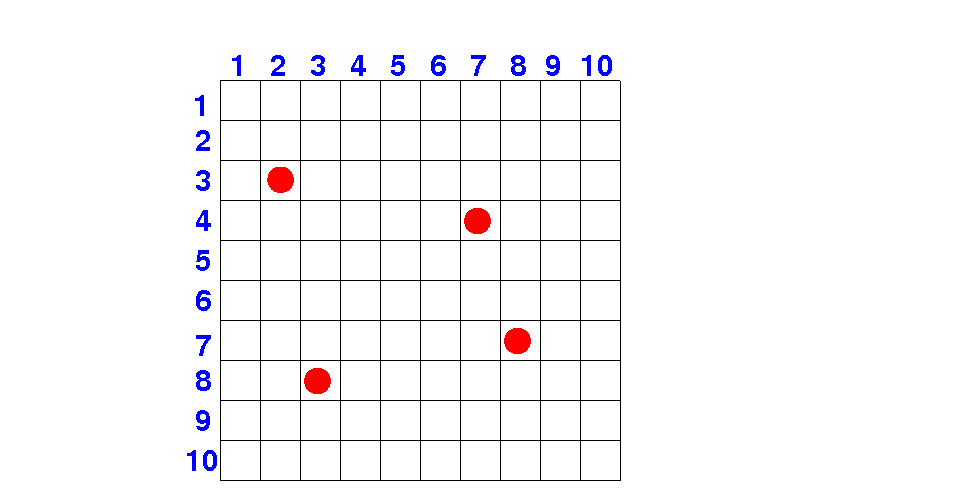

Consider the following input:

  There are many pools with max length = 4...

  The hypothesis states:

     there is a best pool that borders on 1 or a tree !

Verifying the hypothesis

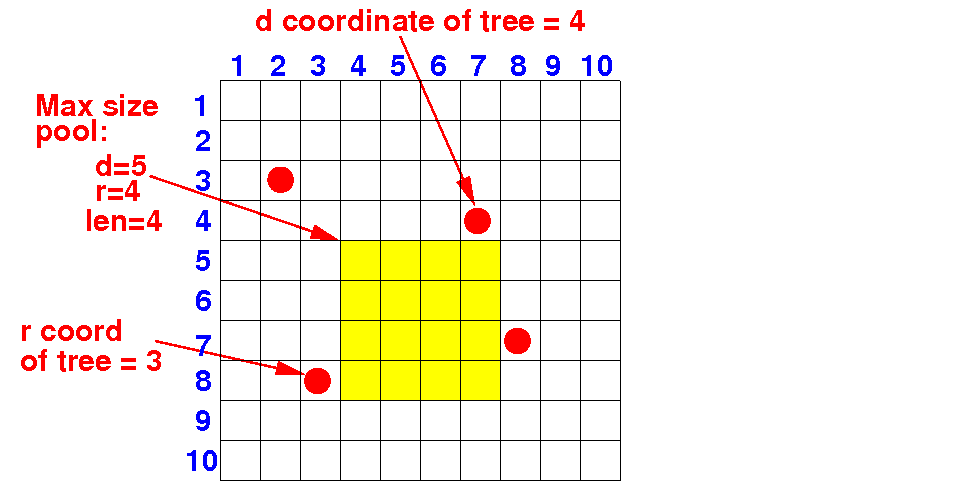

Here is a maximum size pool that borders on 2 different trees:

  There are many pools with max length = 4...

  The hypothesis states:

     there is a best pool that borders on 1 or a tree !

Verifying the hypothesis

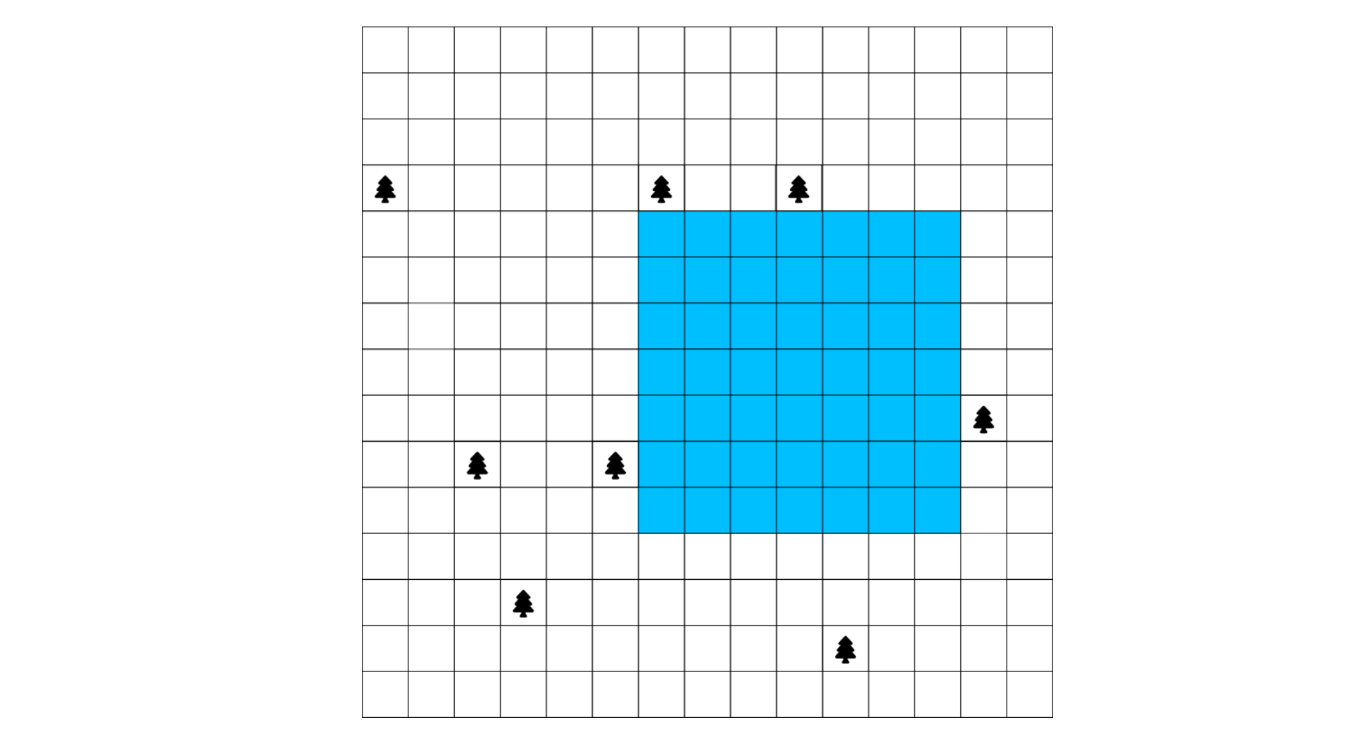

Consider the example 2 from the contest:

  There are many pools with max length = 7...

  The hypothesis states:

     there is a best pool that borders on 1 or a tree !

Verifying the hypothesis

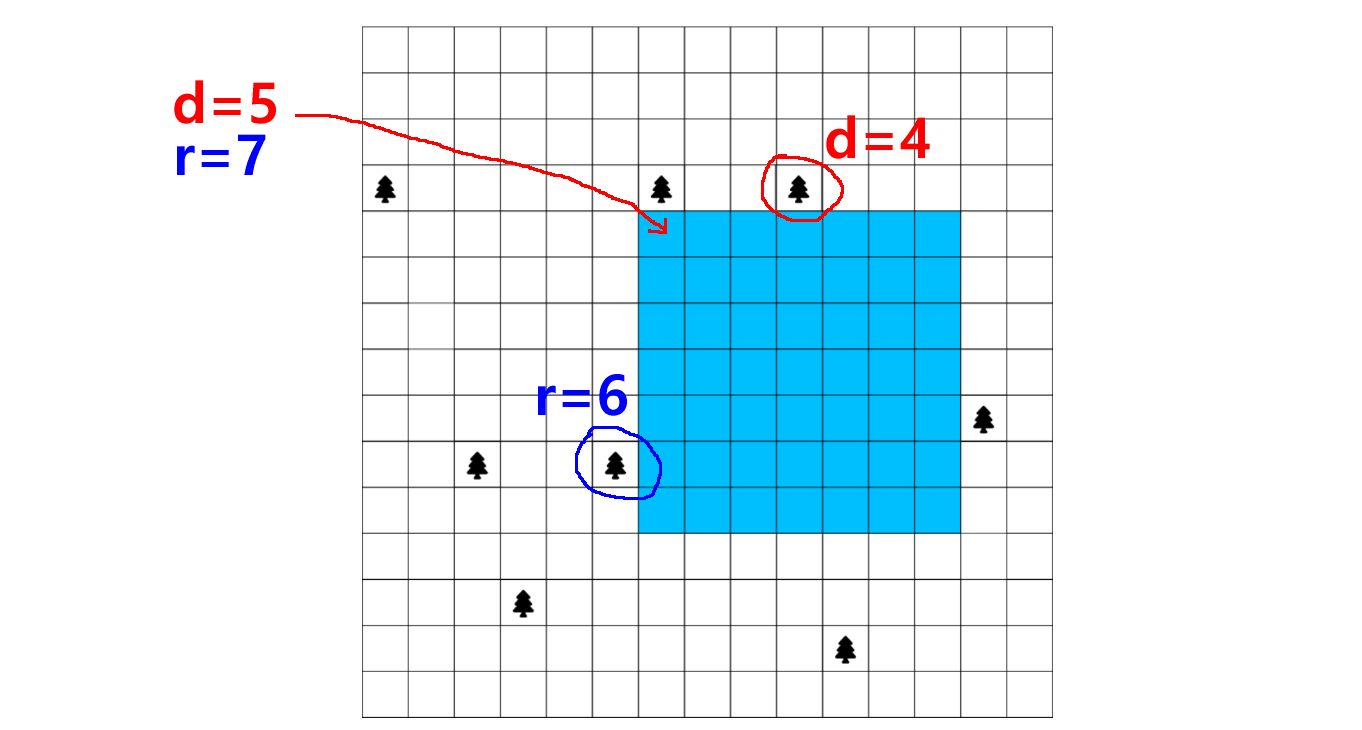

Here is a maximum size pool that borders on 2 different trees:

  There are many pools with max length = 7...

  The hypothesis states:

     there is a best pool that borders on 1 or a tree !

Reducing the search space of the brute force search

Consider the original brute force search method:

  d_best = -1; r_best = -1; len_best = 0;

  for (d = 1; d <= N; d++)
     for (r = 1; r <= N; r++)
     {
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }

Reducing the search space of the brute force search

We can limit the d coordinates to 1 and tree[..][0]+1:

  d_best = -1; r_best = -1; len_best = 0;

  for (d = 1, tree[0][0]+1, tree[1][0]+1, ...)
     for (r = 1; r <= N; r++)
     {
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }

Reducing the search space of the brute force search

We can limit the r coordinates to 1 and tree[..][1]+1:

  d_best = -1; r_best = -1; len_best = 0;

  for (d = 1, tree[0][0]+1, tree[1][0]+1, ...)
     for (r = 1, tree[0][1]+1, tree[1][1]+1, ...)
     {
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }

Programming trick

Notice we have a extra input value 1 that needs to be considered:

  d_best = -1; r_best = -1; len_best = 0;

  for (d = 1, tree[0][0]+1, tree[1][0]+1, ...)
     for (r = 1, tree[0][1]+1, tree[1][1]+1, ...)
     {
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }

Programming trick

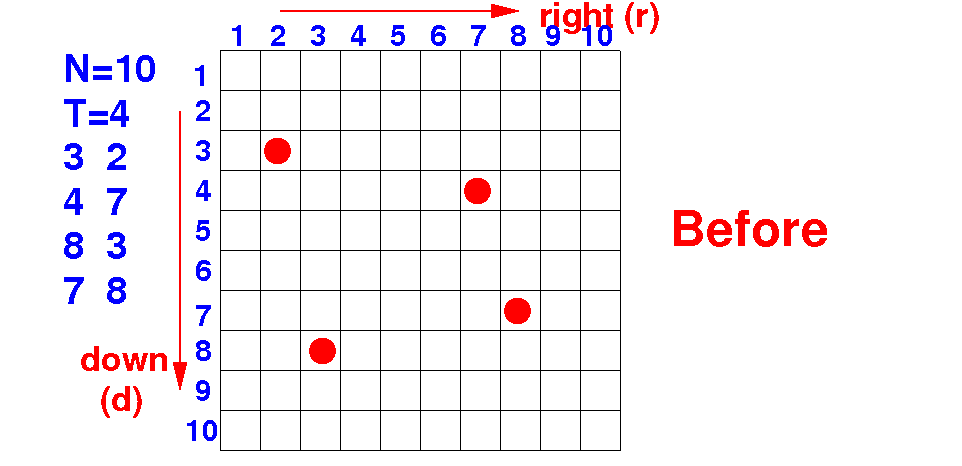

We can store this extra value in the data representation:

 N = 10   // Grid size
 T = 4    // # Trees
 tree[0][0] = 3 tree[1][0] = 4 tree[2][0] = 8 tree[3][0] = 7
 tree[0][1] = 2 tree[1][1] = 7 tree[1][1] = 3 tree[3][1] = 8

Programming trick

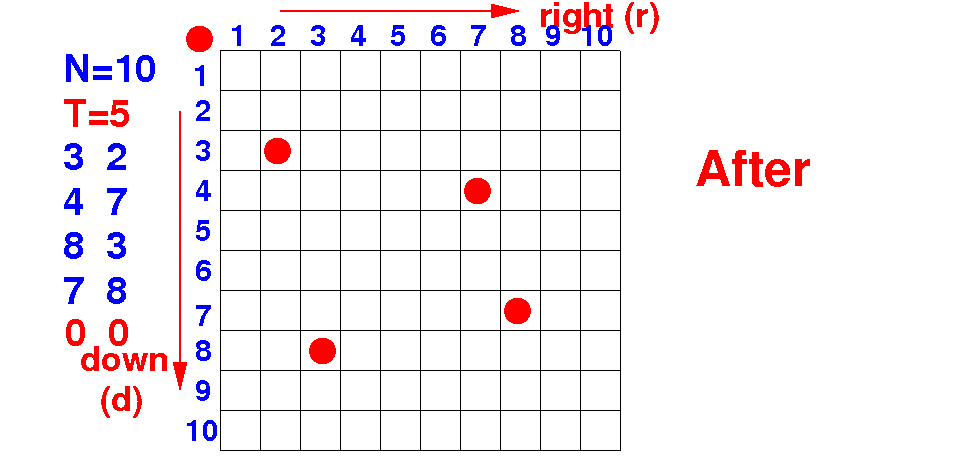

We can store this extra value in the data representation:

 N = 10   // Grid size
 T = 5    // # Trees
 tree[0][0] = 0 tree[1][0] = 3 tree[2][0] = 4 tree[3][0] = 8 tree[4][0] = 7
 tree[0][1] = 0 tree[1][1] = 2 tree[2][1] = 7 tree[3][1] = 3 tree[4][1] = 8

The brute force search algorithm re-written using the programming trick

  d_best = -1; r_best = -1; len_best = 0;

  for (int i = 0; i < T; i++)
  {  d = tree[i][0]+1;
     for (int j = 0; j < T; j++)
     {  r = tree[j][1]+1;
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }
  }

Additional improvement

Consider the for-loop with the index len:

  d_best = -1; r_best = -1; len_best = 0;

  for (int i = 0; i < T; i++)
  {  d = tree[i][0]+1;
     for (int j = 0; j < T; j++)
     {  r = tree[j][1]+1;
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool at (d,r)
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }
  }

Additional improvement

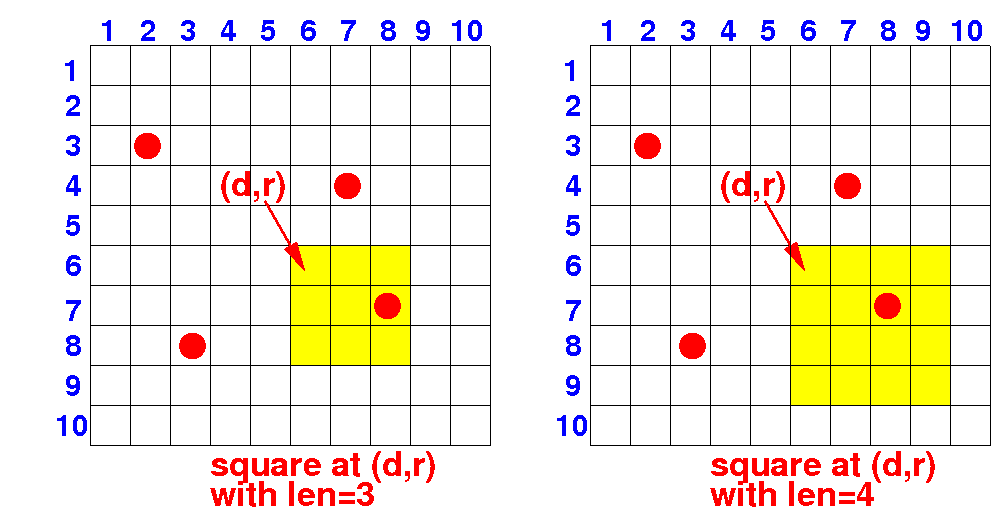

If there is a tree in the square of length len, that same tree will also be in the square of length > len

Therefore:   we can abort the search for larger len values !

Algorithm without the additional improvement

  d_best = -1; r_best = -1; len_best = 0;

  for (int i = 0; i < T; i++)
  {  d = tree[i][0]+1;
     for (int j = 0; j < T; j++)
     {  r = tree[j][1]+1;
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool at (d,r)
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }

           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }
  }

Algorithm with the additional improvement

  d_best = -1; r_best = -1; len_best = 0;

  for (int i = 0; i < T; i++)
  {  d = tree[i][0]+1;
     for (int j = 0; j < T; j++)
     {  r = tree[j][1]+1;
        range = min( N-d+1, N-r+1);
        for (len = 1; len < range; len++)
        {  // Check if there is a tree inside the pool at (d,r)
           isSolution = true;
           for (i = 0; i < T; i++)
              if ( tree i inside pool(d, r, len) )
              {
                 isSolution = false;
                 break;
              }
           if ( !isSolution ) break;   // Abort search
           if ( isSolution )
              if ( len > len_best )
              {
                 d_best = d; r_best = r; len_best = len;
              }
        }
     }
  }

Demo: CCC/2022/Progs/j5-reduce.cc
